147cc Big Bore Kit –CRF110 (All Years)

This kit does require case boring so the new larger cylinder and the skirt will fit down into the OEM cylinder cases. This piston is 58mm and is lightweight, high compression, and meant for use with the stock cylinder head with, or without a big valve kit and high performance cam.

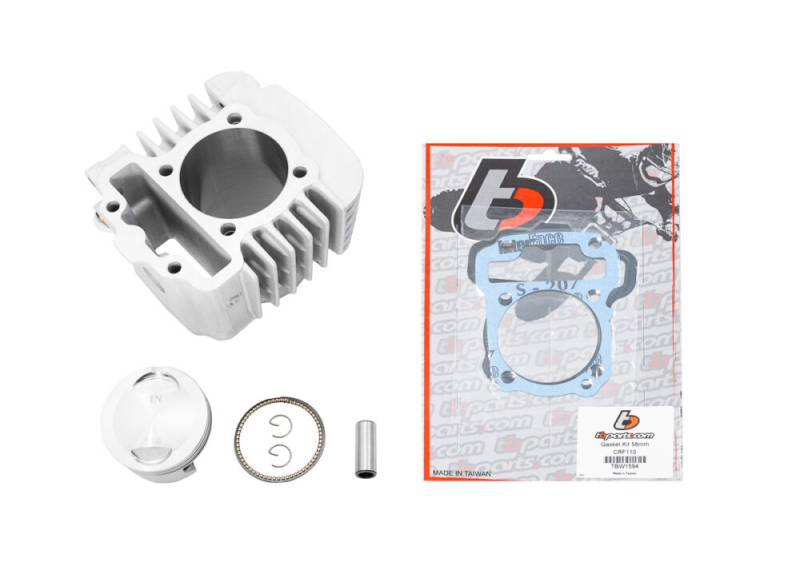

Included:
     -58mm Lightweight high compression complete piston kit
     -Piston rings
     -Piston wrist pin
     -Wrist pin clips
     -58mm All Aluminum Cylinder with temperature sensor port
     -58mm Head and Base Gasket
     -Bolt/washer to close off the temp. sensor port (2018 & older models)

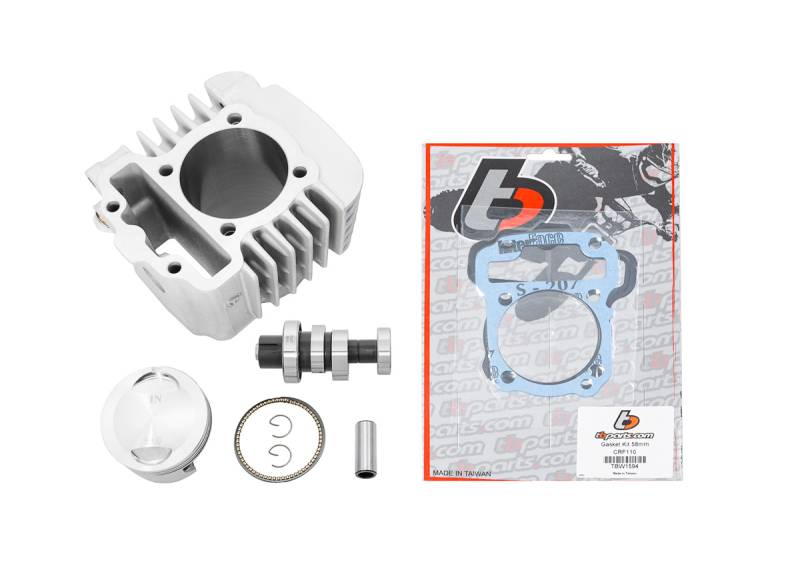

Note:(Order with or w/out a camshaft in the pull down menu)

The cylinder is all aluminum and ceramic coated. The inside of the cylinder sleeve is hard coated for ultimate performance! Base and head gasket included.

Fits all Honda CRF110 year models – NOTE: Case Boring Required
Huge power at a great price!
Runs on 91+ octane pump fuel

High Performance Stage 2.5 Camshaft works with stock engines, our the 132cc or 147cc Big Bore Kits

Valve Lash Settings at TDC:
     -0.003″ Intake & Exhaust.

Tuning –All year models will require tuning for the new larger engine displacement.

Case boring is required: If you don’t have any experience working on your engine, we highly recommend having a professional technician install this kit or, at a minimum, purchasing the shop manual for your bike available from your local Honda dealer. Case boring requires precision and it creates a ton of metal shavings. Its best to completely disassemble (split) the engine when you bore your cases. That way you can ensure the cases are 100% clean and ready for reassembly.

Cylinder skirt L x W is 27 x 60.4mm.

Note –This kits cylinder skirt is extended. This is for future use with a stroker crank in the future. Since the cylinder skirt extends down farther than OEM, when you clear material for the skirt you will remove material directly behind the oil pump. We have successfully cleared this part of the case for this larger cylinder out to 61mm for the 60.4mm wide skirt w/out any issue.

If you have any questions please call one of our knowledgeable and friendly techs at 833-327-8507
