DNM Rear Shock - CRF125

DNM Rear Shocks - Honda CRF125

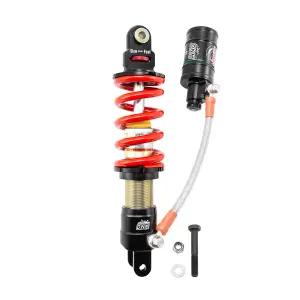

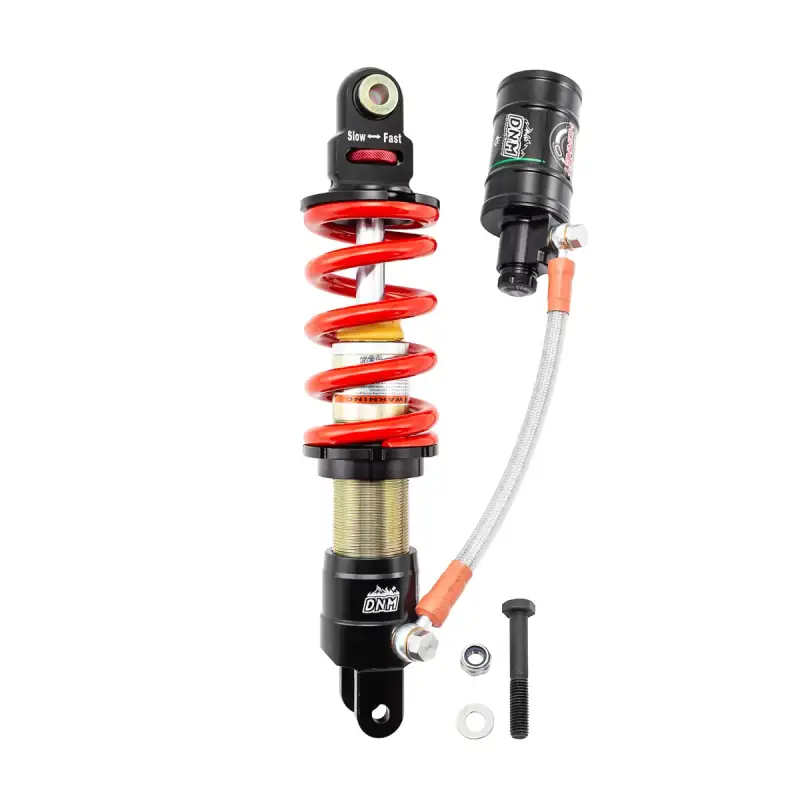

DNM fully adjustable rear shock for CRF125. This shock is a huge improvement over the factory shock. With a long list of upgrades starting with the heavier 700LB spring. Adjustable rebound and compression letting you dial in your rear suspension. Plus the shock stroke is lengthened (+5mm) for extra travel.

     -Simply bolt on and go!

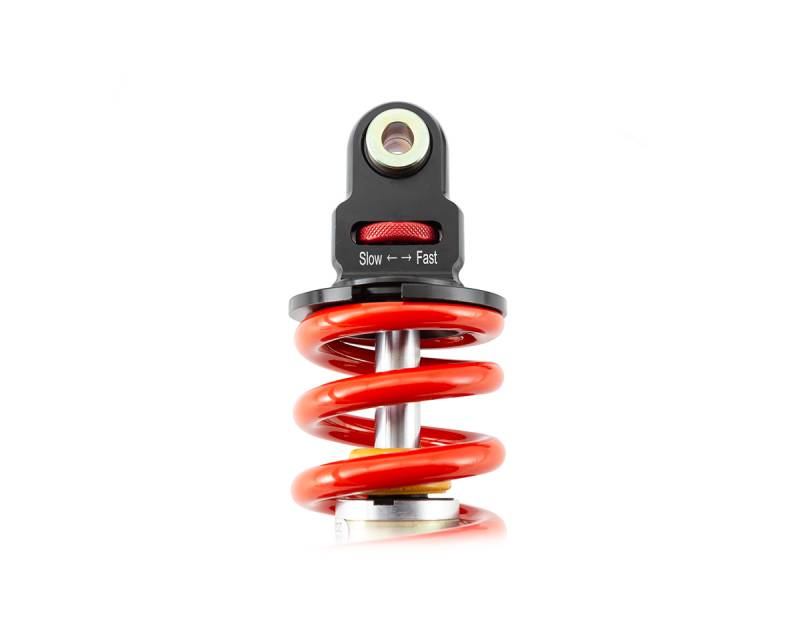

     -Preload and Rebound Adjustments
     -700lb Spring rate great for anyone over 150 lbs.
     -Nitrogen Charged Oil Damping
     -Hard chromed steel 14mm damper shaft with extended stroke and travel
     -High quality surface finish

Fits:
     -Honda CRF125

Important Installation notes:
1) This DNM shock was made as long as possible while getting the most travel out of the limited area available for the shock on the CRF125. (This makes for a tight fit, to install the shock, the top must go up into the top shock mount first (but do not bolt it in until you have bolted the bottom in)
2) Secure the reservoir on the left side behind the side # plate (This area will still clear the left rear side cover)
3) You will need and want to secure the reservoir oil line away from the drive chain to prevent damage to the line while riding.
Securing the reservoir in this area will still clear the left rear side cover.
4) You can use an the OEM frame tab and threaded hole to secure the oil line (with either a zip tie or generic cable/line holder)

Shock Specs:
     -Eye to Eye shock length – 283mm (Factory Measured 281.5mm)
     -Stroke 56mm (Factory measured 51mm)

Important Installation notes:

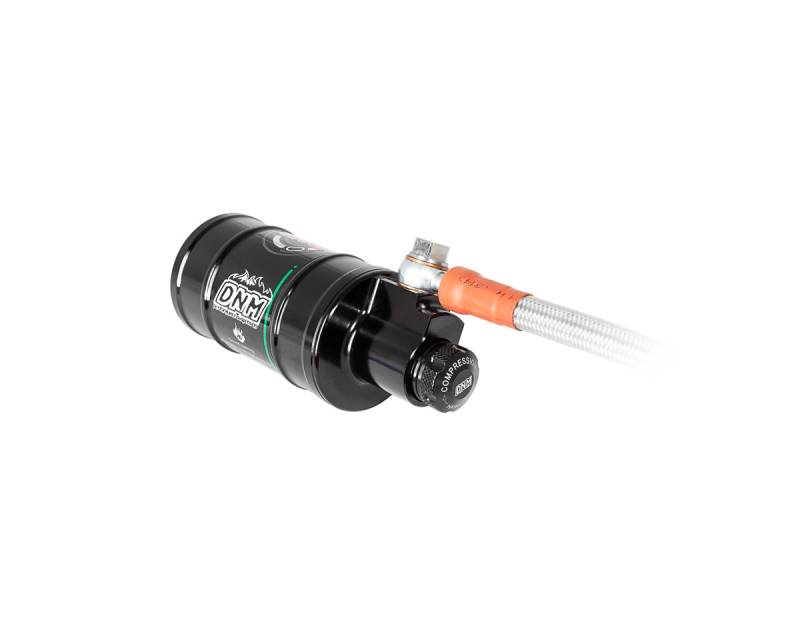

Must secure the remote compression reservoir to the subframe.
Instructions for installation and “shock setup” not included (It will only fit one way).

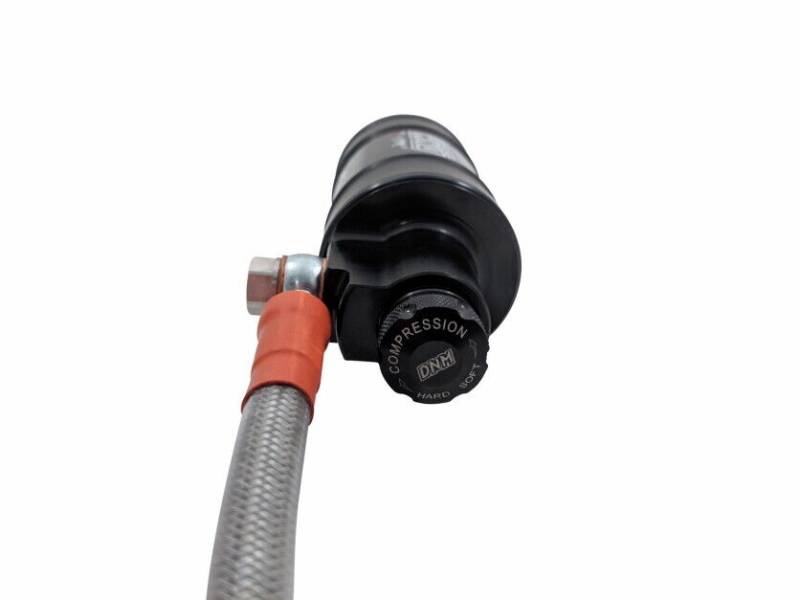

If you are unsure where to start with the shock settings out of the box. Start with the compression knob/clicker in the middle or toward Hard (approximately 9-8 turns from HARD). Next adjust the rebound 4-5 clicks from the slowest setting. Then adjust to preference.

If you have any questions please call one of our knowledgeable and friendly techs at 833-327-8507
